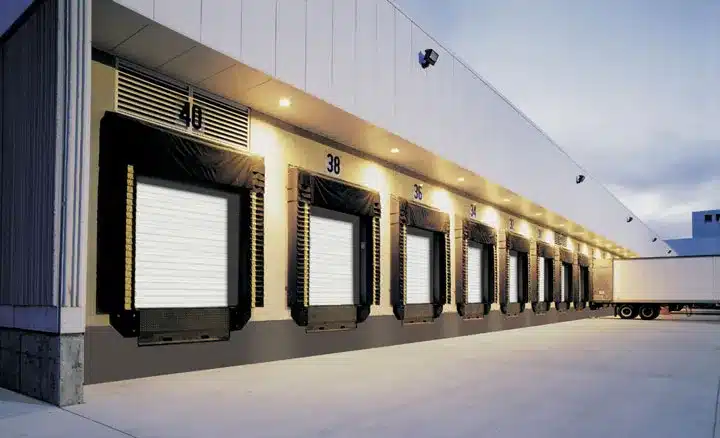

th160 Thermal Sectional Doors
Maximum Thermal Protection
For maximum thermal protection, choose the Raynor TH160, durable, energy-efficient sectional door. Raynor’s exclusive process fills 100% of the commercial door’s interior space with energy-saving polyurethane foam insulation to deliver an exceptional 14.86 R-value. This process also provides a superior foam density for excellent structural integrity. With standard features like the corrosive-resistant rigid aluminum retainer and the EPDM rubber floor seal, the TH160 is built to last!
Rugged Hardware and Springs
The TH160 door comes packaged with the right combination of long-lasting hardware, track, and springs to precisely match your door’s size and application. A QuikClip™ pre-assembled track option is also available.
Maximum Thermal
Protection
Energy-saving polyurethane foam insulation is used to deliver exceptional R-values.
Reduced
Airflow
Dual vinyl barriers dramatically reduce air infiltration. A true thermal break prevents heat loss and eliminates any metal-to-metal contact between surfaces.
Decreased Energy
Costs
TH160 doors help reduce energy costs with a U-shaped, vinyl bottom weatherseal and sturdy aluminum retainer.
Pick Your Garage Door Color
Start creating a beautiful, customized Country Manor garage door design that fits your style by selecting from one of our many color options. Deep, distinct embossing creates a sharp and detailed looking garage door front. Classic, or contemporary, Raynor Country Manor garage doors look high definition.
Standard Base Colors
White
White
Almond
Desert Tan
Sandstone
Bronze
Brown
Black
Slate
Section and Panel Schedules
| Garage Door Width | Number of Raised Panels |
|---|---|
| 5′ 3″ – 9′ 2″ | 2 |
| 9′ 3″ – 12′ 2″ | 3 |
| 12′ 3″ – 16′ 2″ | 4 |
| 16′ 3″ – 20′ 2″ | 5 |
| 24′ 3″ – 28′ 2″ | 7 |
| 20′ 3″ – 24′ 2″ | 6 |
| Garage Door Height | Number of Sections |
|---|---|
| Up to 8′ 2″ | 4 |
| 8′ 3″ – 10′ 2″ | 5 |
| 10′ 3″ – 12′ 2″ | 6 |
| 12′ 3″ – 14′ 2″ | 7 |
| 16′ 3″ – 18′ 2″ | 9 |
| 14′ 3″ – 16′ 2″ | 8 |
| 18′ 3″ – 20′ 2″ | 10 |
| Door | |
|---|---|
| Type | Commercial Sectional Garage Doors |
| Model | TH160 |
| Size | 24′ x 22′ Max |
| Operation | Manual, Motor or Hand Chain |
| Sections | |
| Construction | 3-Layer Sandwich |
| Material | Steel |
| Surface Texture | Stucco Exterior; Stucco Interior |
| Section Joint | Ship Lap |
| Section Thickness | 1-5/8″ |
| Gauge | Exterior Steel Thickness 0.015″ |
| Stiles | 16-Gauge |
| Insulation | Polyurethane (R-value 14.86) |
| Seals | Thermal Break, Bottom Seal (3″) |
| Trussing | Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar 4″, 6″, or 8″ sizes |
| Panel Configuration | NA |
| Color | White |
| Windows | 24″x12″ two-piece acrylic, clear insulated glass, clear insulated tempered |
| Track | |
| Type | Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour, and QuikClip™ Pre-Assembled Track Options |
| Finish | Galvanized |
| Size | 2″ or 3″ |
| Gauge | 12, 13, 16-Gauge |
| Counterbalance System | |
| Type | Torsion Spring, Tandem Shaft Torsion Spring, or Weight Counterbalance |
| Springs | Spring Inner Diameter: 2-1/4″, 3-1/2″ or 5-1/2″; Duplex or High Cycle (30K, 50K, 100K) |
| Shafts | Tube (13-Gauge) or Solid (D-Shaft, 1″ Keyed, 1-1/4″ Keyed) |
| Hardware/Accessories | |
| Hinges | 11, 13, 14-Gauge or Hybrid |
| Rollers | Standard (2″ or 3″) or Heavy Duty (2″ or 3″) |
| Finish | Galvanized |
| Lock | Interior Slide Lock |
| Seal(s) | Header Seal or Jamb Seal |
| Hanger Angle | 11, 13, 16-Gauge |
Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Raynor also warrants the door sections against delamination of the polyurethane foam insulation from the steel skins for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
Hardware:
Raynor® warrants all hardware against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.
Springs:
Raynor® warrants springs against defects in material and workmanship for one (1) year from date of delivery. The limited warranty for special high-cycle springs is prorated by percentage of cycle use, and must be determined by the use of a non-resettable cycle counter.
ColorWave™ Paint System:
Raynor provides a five-year warranty for the ColorWave Paint System (exterior only) against chipping, cracking, and peeling (loss of adhesion) from the date of delivery to the original purchaser. This warranty covers defects in materials and workmanship under normal use and proper maintenance. Please note that fading, as well as chipping, cracking, or peeling caused by dents or scratches, are not included in this coverage. Additionally, for doors made with polyurethane insulation, a solar reflective paint formulation is required to maintain the warranty. Ordering a color that does not meet this requirement will void the warranty for the ColorWave Paint System. Field applied paint is not covered by this warranty. This warranty applies only to the original purchaser and may be subject to inspection before approval of any claim.
Warranty Limitations and Exclusions:
Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an qualified installer. This warranty applies only to door systems that are professionally installed by an authorized Raynor Dealer.
This limited warranty extends only to the original purchaser, provided the door is installed in the original purchaser’s place of business. This limited warranty is not transferable.
This limited warranty does not apply to black, charcoal, slate, and iron ore steel colors used on Raynor EnergyCore series, ThermaSeal Series, Commercial Country Manor and Commercial Aspen series doors when installed in areas experiencing extreme heat for prolonged periods of time. The result of these environmental conditions can elicit a failure of the polyurethane core of the door. The warranty also excludes doors which have been field painted where the paint does not include a solar reflective additive.
This limited warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. It also does not apply to damage or deterioration caused by saltwater coastal areas, hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this limited warranty. Field applied paint failure is not covered by this limited warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.
This limited warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this limited warranty.
This limited warranty does not apply to building damage caused by moisture infiltration through or around the door. A garage door system is water resistant, but not waterproof. When a garage door system is properly assembled, installed, and maintained the risk of significant water infiltration is low.
Raynor shall not be liable for any consequential or incidental damages.
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.
Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.
This limited warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
