MP Mechanical Leveler

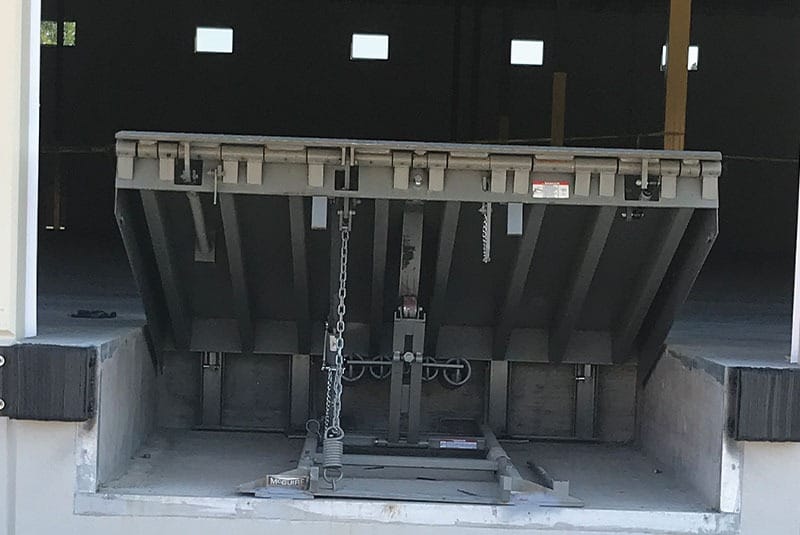

Pit Style Mechanical Dock Leveler

 5/5

Features

Manual Activation
Mechanical operation
30,000 - 50,000 CIR
Structural steel and four-sided box construction
Full width rear hinge mounted in compression with structural channel support
Multi-spring centrally located off pit floor
Mechanical Lip Operation
Optional sliding toe guards
Cam control counter balance
Max Standard Width - 7'
Max Standard Length - 12'

The MP Series mechanical dock leveler design allows finger tip release pull chain activation with smooth reliable operation via a cam and roller counterbalance to assure smooth dependable walk down to trailer bed with below dock capability included. The hold down design floats with air ride trailers and the full width rear compression hinge is designed for superior strength. Designed to meet your budget plus offer years of trouble free service. The sub frame design allows easy clean out and servicing – a Hallmark of all McGuire levelers. The “MP” is made with safety, trouble free service and your budget in mind. They are also most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. The “MP” mechanical levelers have built in safety features and are easy to maintain.

They come in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths. Standard capacities are 25K, 30K, 35K, 40K, 45K and 55K CIR (Comparative Industry Rating).

SPECIFICATIONS

MODEL

HP-66

HP-68

HP-610

HP-656

HP-658

HP-6510

HP-76

HP-78

HP-710

NOMINAL SIZE

6' x 6'

6' x 8'

6' x 10'

6'6" x 6'

6'6" x 8'

6'6" x 10'

7' x 6'

7' x 8'

7' x 10'

CAPACITY - COMPARITIVE INDUSTRY RATING (CIR)

25,000 LBS. CIR

30,000 LBS. CIR

35,000 LBS. CIR

40,000 LBS. CIR
