Amarr 2432 Polystyrene Insulated Commercial Door
High R-Value Doors to Meet All Your Needs
Overview

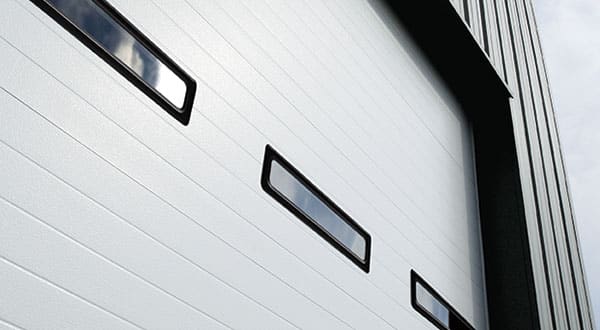

Solid steel construction is the basis for the Amarr 2432 Polystyrene Insulated Steel Doors. Two tough steel skins surround 2 inches of CFC-free polystyrene insulation. In addition, a thermal break creates a barrier to keep heat and cold from transferring through the door. Tough doors provide intelligent solutions as the durable construction, quality components,
- Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit www.amarr.com.
- Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available for up to 100,000 cycles.
- Hardware: Amarr hardware includes a minimum of 14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have a minimum of 10-ball bearings.
- Maximum Door Size: 24′ 2″ W x 26′ 1″ H
- Steel Thickness: 24 / 27 ga
Available with Rapid Install
The Rapid Install system for Amarr’s Vertical Lift doors is designed specifically for commercial sectional doors, saving approximately 20 minutes of installation time per door.
Simplified Track & Hardware
- Heavy .063 gauge 1-piece 2″ and 3″ vertical track
- Preassembled end-bearing plate
- Self-lubricating nylon rollers
- Widebody hinges
- Optional keyed hollow shaft
Reduced Installation Time
- Engineered for one-man installation
- Fewer trips up the wall
- Fewer components to assemble
- 10 fewer wall attachments
True White
Sandstone
Commercial Gray
Brown
26″ x 13″ insulated
24″ x 8″ insulated
Steel + Insulation + Steel
- Steel Exterior
- Polystyrene Insulation
- Steel Interior
- Bottom Weather Seal
Construction:
- Heavy-duty hardware for smooth operation, long life, and low maintenance.
- The outer skin is made from 24-gauge steel and features a stucco embossment with shallow pencil grooves.
- The interior skin utilizes 27-gauge steel with stucco embodiment.
- Stucco embossed interior surface camouflages day-to-day wear and tear.
- CFC-free Polystyrene insulation is eco-friendly and chemically bonded to the steel panels building strength and energy efficiency.
- Wind Load available
- 10-Year Limited Warranty
Brochures
Sectional – Amarr 2432 / 2732 – Download pdf
Warranty
Commercial Sectional Warranty – Download pdf
