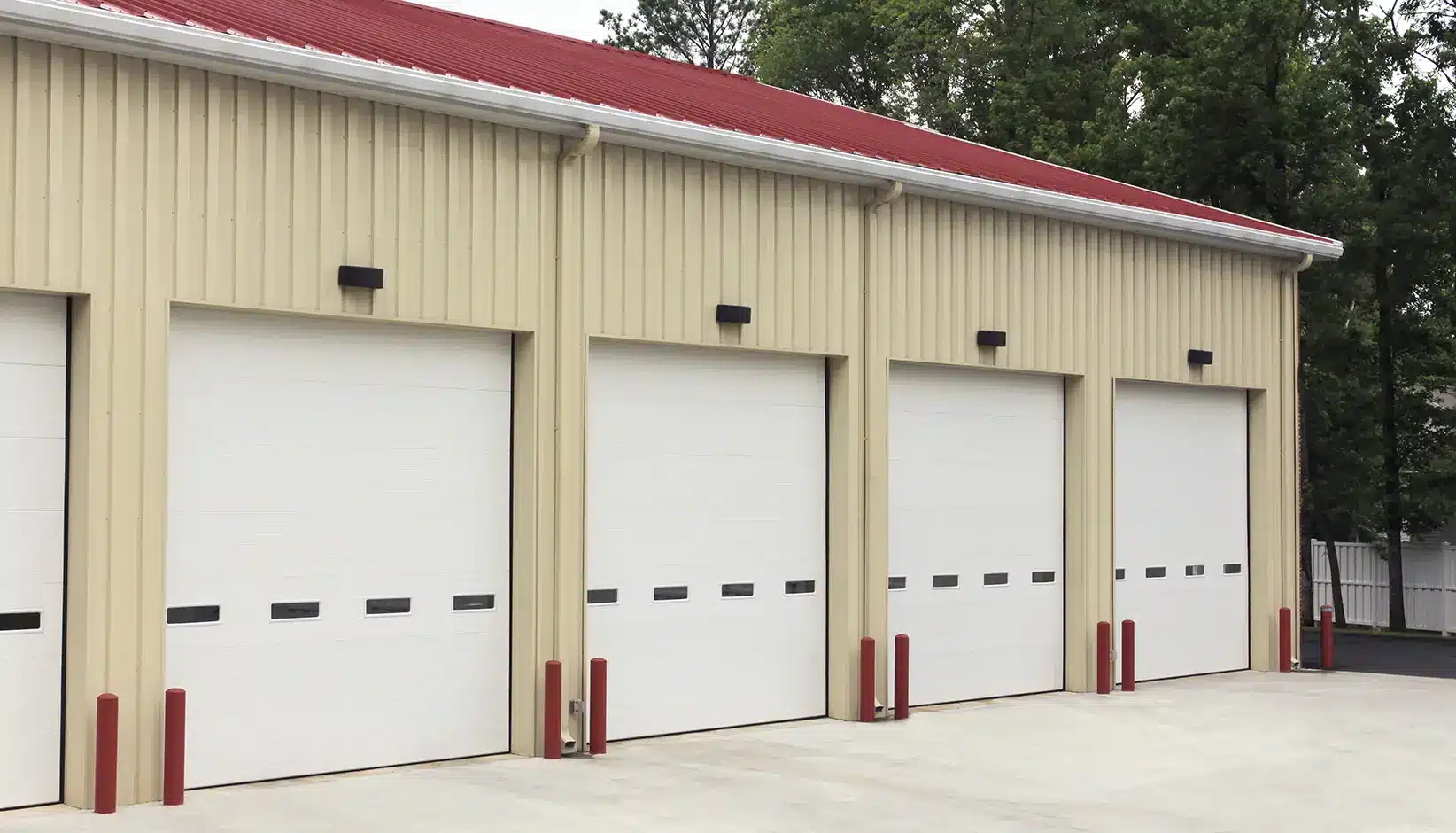

Clopay’s Intellicore overhead doors meet the needs of commercial buildings that require exceptional climate control. They feature polyurethane insulation which helps keep the building’s interior cooler in summer and warmer in winter. Our energy-efficient commercial doors include stucco or woodgrain embossed steel exteriors with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, manufacturing plants, municipal buildings and retail stores.
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | Std Max Width** | Std Max Height |
| 3730 | 3″ | Stucco | 27 Gauge | Minor Ribbed | 27.2 | 30’2″ | 20’0″ |
| 3724 | 2″ | Stucco | 24 Gauge | Minor Ribbed | 18.4 | 36’2″ | 20’0″ |
| 3723 | 2″ | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 24’2″ | 18’0″ |
| 3722 | 2″ | Stucco | 20 Gauge | Flush | 18.4 | 32’2″ | 20’0″ |
| 3721 | 2″ | Woodgrain | 27 Gauge | Flush | 18.4 | 24’2″ | 18’0″ |
| 3720 | 2″ | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 40’2″ | 20’0″ |
| 3717 | 1 3/4″ | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 24’2″ | 20’0″ |
| 3718 | 1 3/4″ | Stucco | 27 Gauge | Flush | 16.2 | 24’2″ | 20’0″ |
| 3715 | 1 3/8″ | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 18’2″ | 16’0″ |
Clopay’s proprietary polyurethane Intellicore® insulation
*Calculated door section R-value is in accordance with DASMA TDS-163
**For sizes over 32’2″ wide consult factory for specific configuration requirements.
24″ X 8″ (3715, 3717, 3718, 3720, 3724, 3730)
24″ X 12″ (3715, 3717, 3718, 3720, 3724, 3730)
Full-View* (3715, 3717, 3718, 3720, 3722, 3724)
19-1/2″ x 12″ (3721, 3723)
*Intellicore® polyurethane insulated full-view sections available in models 3720, 3722 and 3724.
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass
Obscure Glass
White Laminate Glass*
Black Laminate Glass*
Frosted Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 1/2″. Low-E available on insulated glass.
Standard White
Almond
Desert Tan
Sandtone
Bronze
Mocha Brown
Gray
Charcoal
Chocolate
Black*
Trinar® White*
Trinar® Beige
Commercial Tan
Premium finishing options include:
Double-end hinge
3″ track
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3″ sealed roller with 5/8″ stem
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Upgrade your standard door with industrial-grade components.
25,000, 50,000 or 100,000 cycle springs available.
Carry-away, roll-away or swing-up mullions are available on select sizes.
Single section and double sections available on select sizes.
32″ wide x 80″ high, max 16’2″ wide section. Available in 2″ thick doors only.
The Safe-T-Stop is a controlled descent sectional door hand hoist with an integral braking system allowing users to operate the door with confidence.
| Panel Design: | 3″ thick stucco embossed ribbed steel exterior |
| Steel Gauge: | 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 27.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust prevention |
| Colors: | Snow mist white, commercial brown, ColorblastTM |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
| Panel Design: | (3720 & 3724) 2″ thick stucco embossed steel exterior with minor ribbed pattern (3722) 2″ thick stucco embossed flush steel exterior |
| Steel Gauge: | (3720) 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior (3724) 24 gauge (.022″ min) exterior; 28 gauge (.016″ min) interior (3722) 20 gauge (.034″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 18.4* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | (3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, charcoal and Color Blast™ (3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast™ (3722) Standard white, chocolate and Colorblast™ |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
| Panel Design: | (3717) 1 3/4″ thick stucco embossed steel exterior with minor ribbed pattern (3718) 1 3/4″ thick stucco embossed flush steel exterior |
| Steel Gauge: | 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 16.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white. |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
| Panel Design: | 1 3/8″ thick stucco embossed steel with minor ribbing |
| Steel Gauge: | 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 12.9* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white or commercial brown, tan and gray |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
*Calculated door section R-value is in accordance with DASMA TDS-163.

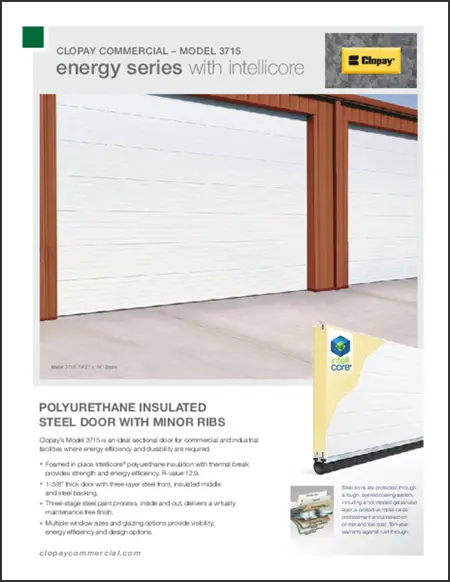

Foamed in place Intellicore® polyurethane insulation provides strength, energy efficiency, and an R-value of 12.9.
With an R-Value of 16.2, Models 3717 and 3718 are outfitted with our innovative Intellicore® polyurethane insulation to maximize energy efficiency.
These polyurethane insulated steel doors are durable, energy-efficient, and customizable with an R-Value of 18.4.
Model 3722 Polyurethane Insulated flush steel doors are designed for commercial and industrial facilities where demanding conditions require a rugged, energy-efficient door.

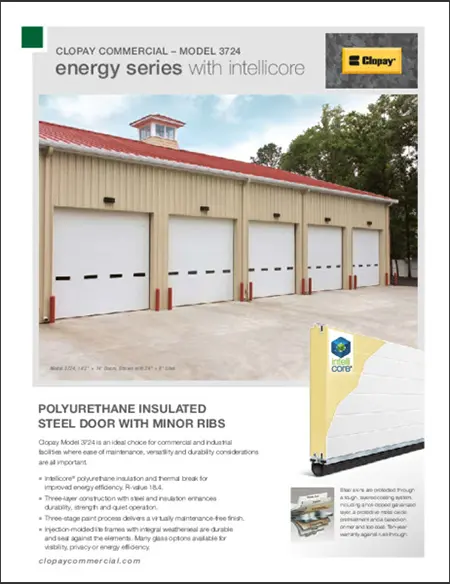

Our Model 3724 is a durable, versatile, and easy-to-maintain door for commercial and industrial use.
Clopay Model 3730 is for commercial and industrial facilities where ease of maintenance, versatility, durability and high R-value are important.
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
