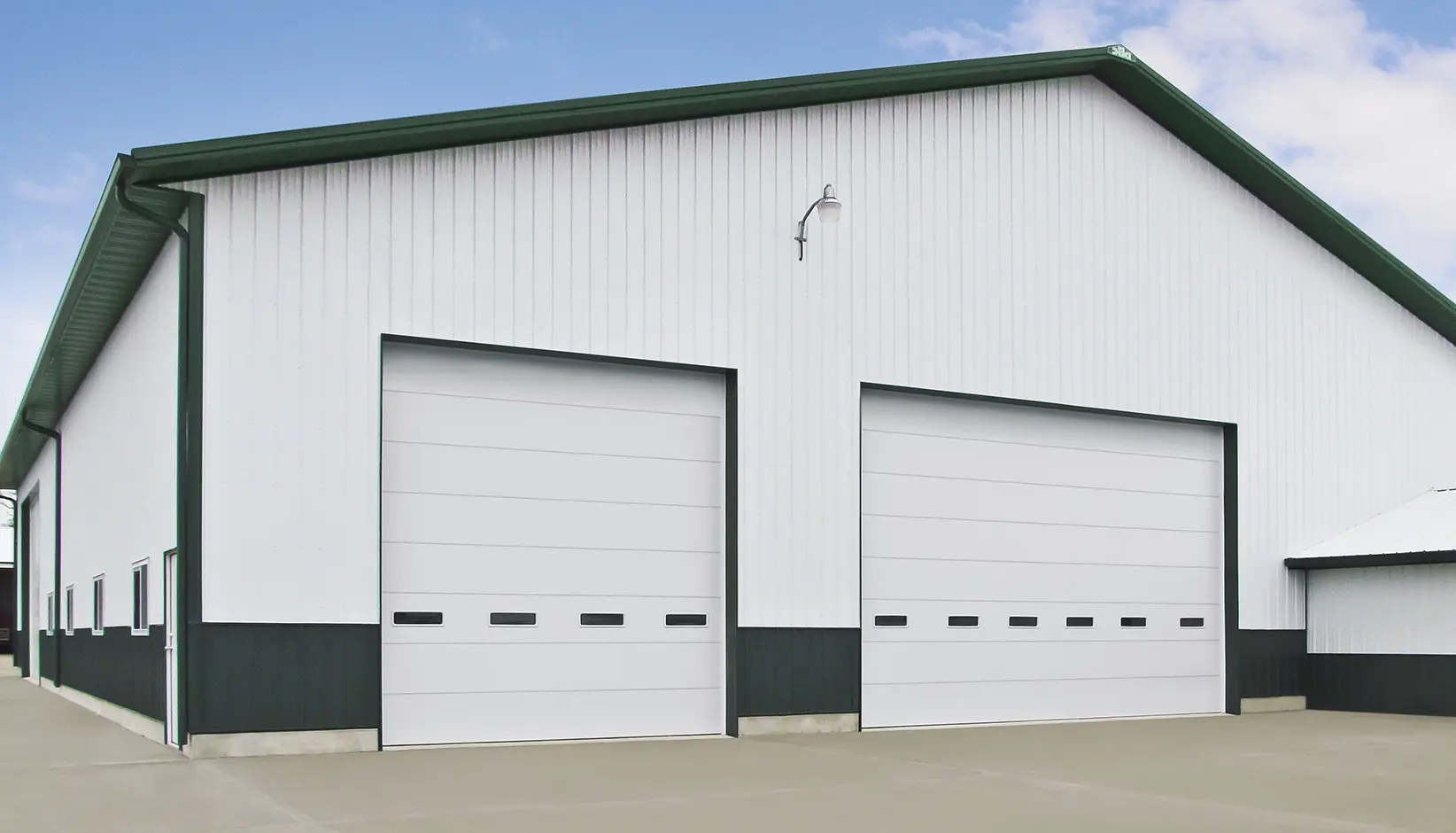

Clopay Industrial Series overhead doors provide a combination of performance and reliability for a range of industrial applications. For increased energy efficiency, polystyrene insulated insulation with a vinyl or steel backer, is available. These commercial doors offer an assortment of flush, ribbed or raised panel designs in a variety of colors, textures, windows and steel gauges. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

ModelSection
Thickness
Panel
Design
Ext. Steel
Gauge
BackerR-value*Max Width**Max Height
5202″Minor & Deep Ribs20 GaugeN/AN/A26’2″20’0″
520S2″Minor & Deep Ribs20 GaugePre-painted 30 gauge steel back cover6.626’2″20’0″
5222″Flush20 GaugeN/AN/A24’2″24’0″
522S2″Flush20 GaugePre-painted 30 gauge steel back cover6.6**24’2″24’0″
5242″Minor & Deep Ribs24 GaugeN/AN/A24’2″20’0″
524V2″Minor & Deep Ribs24 GaugePolyethylene vinyl back cover6.626’2″20’0″
524S2″Minor & Deep Ribs24 GaugePre-painted 30 gauge steel back cover6.624’2″20’0″
5252″Minor & Deep Ribs25 GaugeN/AN/A20’2″16’0″
525V2″Minor & Deep Ribs25 GaugePolyethylene vinyl back cover6.620’2″16’0″
525S2″Minor & Deep Ribs25 GaugePre-painted 30 gauge steel back cover6.620’2″16’0″
6642 1/8″Raised Panel Steel24 GaugeN/AN/A20’2″16’0″
664V2 1/8″Raised Panel Steel24 GaugePolyethylene vinyl back cover6.320’2″16’0″

*Calculated door section R-value is in accordance with DASMA TDS-163

Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options
  • Windows
  • 24″x6″
  • 24″x12″
  • Full View (pre-painted white or brown or clear anodized)
Color Options

Standard White

Almond

Desert Tan*

Sandtone*

Chocolate Brown

Commercial Tan

Gray

Trinar® White*

** Available on select models.

Performance Options
  • High Cycle Springs (25K, 50K and 100K available)
  • 3″ heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rated
  • Photo eyes, sensing edges and Operators
  • Extended 8-Year Hardware Warranty
  • Header (top) and Jamb Seals
  • High Performance Hardware Upgrade
Custom Options
  • Mullions
Model 520/524/525
Panel Design:2″ thick roll formed ribbed steel
Steel Gauge:20 ga (.034″ min) – Model 520, 24 ga (.022″ min) – Model 524and 25 ga (.019 min) – Model 525 ribbed steel sections
Joint Design:Tongue and groove
Thickness/Insulation:No insulation
Hardware:14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors:Pre-painted white or brown (520/525)
Pre-painted white, brown, tan or gray (524)
Limited Warranty:10-year finish against rust / one-year material & workmanship

Model 520S

Panel Design:2″ thick roll formed stucco embossed ribbed steel
Steel Gauge:20 gauge (.034″ min) for maximum dent resistance
Joint Design:Tongue and groove
Thickness /Insulation1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal ConductivityR-Value 6.6*
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
ColorsPre-painted white or brown
Limited Warranty:10-year paint / one-year material & workmanship



Model 522/522S















Panel Design:2″ thick roll formed stucco embossed flush steel
Steel Gauge:20 gauge (.034″ min) for maximum dent resistance
Joint Design:Tongue and groove
Thickness /Insulation1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal ConductivityR-Value 6.6*
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
ColorsPre-painted white or brown
Limited Warranty:10-year paint / one-year material & workmanship



Model 524V/524S













Panel Design:2″ thick roll formed stucco embossed steel
Steel Gauge:24 gauge (.022″ min) ribbed steel sections
Joint Design:Tongue and groove
Thickness /Insulation

1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover (524V)

1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S)

Thermal ConductivityR-Value 6.6*
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
ColorsPre-painted white, brown, tan or gray
Limited Warranty:10-year paint /one-year material & workmanship



Model 525V/525S















Panel Design:2″ thick roll formed smooth steel with combination of deep minor ribs
Steel Gauge:25 gauge (.019″ min)
Joint Design:Tongue and groove
Thickness /Insulation

1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover (525V)

1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S)

Thermal Conductivity:R-Value 6.6*
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:Pre-painted white or brown
Limited Warranty:10-year paint / one-year material & workmanship
Model 664
Panel Design:1 7/8″ thick roll formed steel
Steel Gauge:24 gauge (.22″ min) raised panel door
Joint Design:Tongue and groove
Thickness & InsulationNo insulation
Hardware:14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors:Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan.
Limited Warranty:10-year finish against rust through / one-year material & workmanship



Model 664V
Panel Design:1-7/8″ thick woodgrain embossed raised panel steel
Steel Gauge:24 gauge (.022″ min) ribbed steel sections
Joint Design:Tongue-and-groove
Thickness /Insulation1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover
Thermal ConductivityR-Value 6.3*
Paint System3-stage paint process delivers maintenance free finish that resists rust perforation
ColorsPre-painted white, brown, tan or gray; Trinar white or beige
Limited Warranty:10-year paint / one-year material & workmanship



*Calculated garage door section R-value is in accordance with DASMA TDS-163.

Track/Jamb
Drawing
DXF
PDF
Standard Track
Standard Track Follow the Roof Track
Low Headroom–Rear Mount Track
Low Headroom–Front Mount Track
Vertical Track
High Lift Track
High Lift Follow-the-Roof Track
Jamb Details
Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

Brochure Model 520/520S

A great fit for industrial applications, models 520 and 520s deliver on durability and weather protection.

Brochure Model 524/524S

Weather-proof and durable, these doors are made with optional polystyrene insulation and an injection-molded lite frame with integral weatherseal for optimum protection.

Brochure Model 525/525S/525V

These rib-steeled doors come available in polystyrene insulated or non-insulated with our advanced Tog-L-Loc® design for rust and leak prevention.

Brochure Model 664/664V

Our contemporary-look Models 664 and 664V raised panel steel doors are available in both insulated and non-insulated options.

Extended 8-Year Hardware Warranty

Facilities rely on their openings to get work done. That’s why we offer an Extended 8-Year Warranty for demanding applications.

Brochure 522/522S

Our flush-steel doors are available with our environmentally safe insulation with a 30 gauge prepainted steel back cover.

Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more.

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
