CentraAir Air-Powered Leveler

Pit Style, Compressed Air Powered Dock Leveler

 5/5

Features

Push-button activation
Air powered
30,000 - 50,000 CIR
Structural steel w/ plate outboards, four-sided box construction
Full width rear hinge mounted in compression with structural channel support
Steel belted air bellows with compressed air
Mechanical Lip Operation
Sliding toe guards
No electrical needed in pit
Optional Barrier Lip
Max Standard Width - 7'
Max Standard Length - 12'

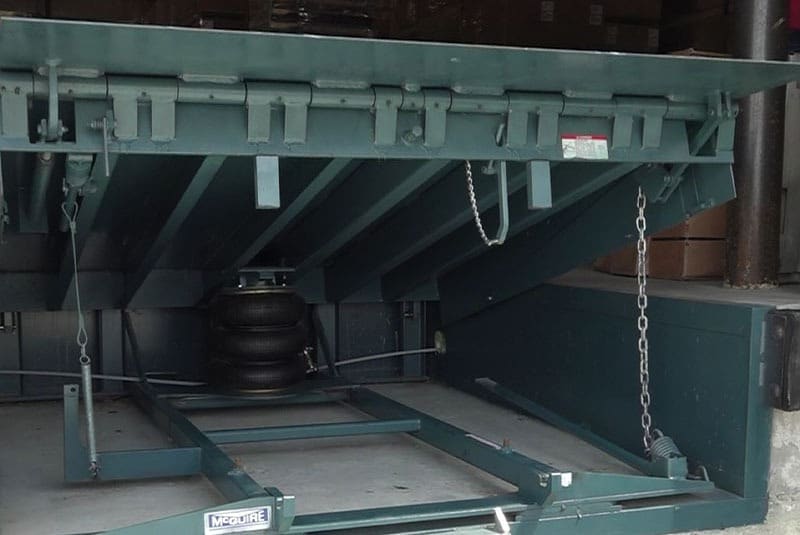

The McGuire® CentraAir® (CA) air-powered dock leveler incorporates the use of existing plant air or dedicated compressor and an industrial automotive-grade air bellows system to raise and lower the platform. It’s operated with “push button” activation and requires no electricity in the pit, making the unit perfect for wash-down applications or wet environments.

The CA Air-Powered Leveler is an environmentally friendly addition to any material handling operation and will have minimal effect on the building’s electrical footprint. This leveler is available in a wide range of sizes and capacities and can be modified for special applications.

The CentraAir Leveler comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths. Standard capacities are 25K, 30K, 35K, 40K, 45K, and 55K CIR (Comparative Industry Rating). Patent US 8, 627, 529

SPECIFICATIONS

MODEL

HP-66

HP-68

HP-610

HP-656

HP-658

HP-6510

HP-76

HP-78

HP-710

NOMINAL SIZE

6' x 6'

6' x 8'

6' x 10'

6'6" x 6'

6'6" x 8'

6'6" x 10'

7' x 6'

7' x 8'

7' x 10'

CAPACITY - COMPARITIVE INDUSTRY RATING (CIR)

25,000 LBS. CIR

30,000 LBS. CIR

35,000 LBS. CIR

40,000 LBS. CIR
