Amarr 3582 Aluminum Multi View Commercial Door
High R-Value Doors to Meet All Your Needs
Overview
Make a unique style statement with the long and distinctive linear glass design of the Amarr 3582 Aluminum MultiView doors. Constructed of 2″ thick extruded aluminum rails and stiles and built with the broadest glass dimensions that safety and reliability standards allow, these doors are built to last.
- Maximum Door Size: 20’2” W x 20’1” H
- Minimum Door Height: 6′ 0″
- <b.Material: Aluminum
- Construction Layers: Single
- Construction: Equal glass heights in all door sections, Glass expanses up to 8’2″ wide, Durable, 2″ thick extruded aluminum stiles and rails, The tongue and groove section joint with the leading-edge bulb seal and bottom weather seal provides greater protection from the elements, ClearView aluminum strut system provides strength without restricting the viewing area, Can be operational or mounted stationary for a unique design solution, 31 glazing options, Available in six anodize and 26 PVDF or powder coat finishes, 5-Year Limited Warranty
In Stock Finishes
True White
Clear Anodized
Dark Bronze Anodized
Black Anodize
Special Order Finishes
Champagne Anodized
Copper Anodized
Medium Bronze Anodized
Paint – Powder Coat Finishes
White
Super Black
Slate Gray
Silver
Sierra Tan
Sandstone
Sage Brown
Quaker Bronze
Pewter
Patina Green
Military Blue
Light Seawolf Beige
Ivory
Interstate Blue
Hartford Green
Dove Gray
Dark Ivy
Colonial Red
Classic Copper
Charcoal Gray
Champagne Pearl
Carnival Red II
Burnt Sun
Boysenberry
Whiteout
Snow
Obscure
GreyLite
Green Tint
Gray Tint
Frost
Clear Tint
Bronze Tint
Black Ice

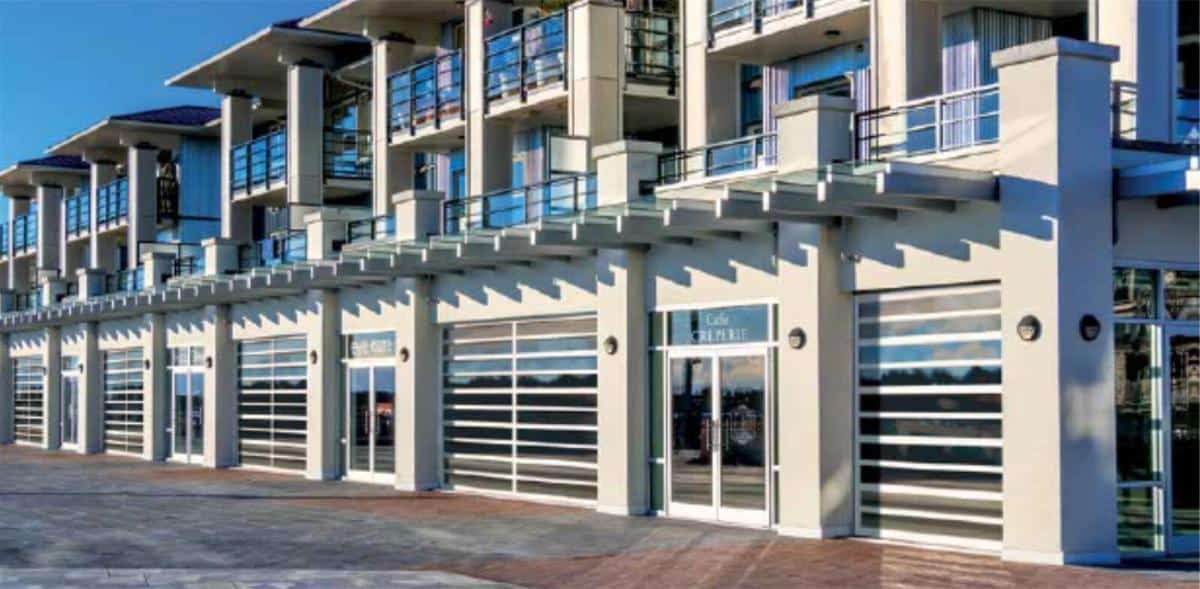

MultiView Aluminum door
- 2″ thick extruded aluminum rails & stiles
- Tongue and groove section joints provide additional protection against the elements
- Equal glass heights in all sections of a door
- Glass expanses up to 8’2″ wide
Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available.
Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available for up to 100,000 cycles.
Hardware: Amarr hardware includes a minimum of 14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have a minimum of 10-ball bearings.
Rapid Install Vertical Lift
Wind Load
Made in the USA
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Single Pane Glazing
| Door Width | Center Stiles | Windows / Sections |
|---|---|---|
| Up to 8’2″ | 8’3″ – 16’2″ | 16’3″ – 20’2″ |
| 0 | 1 | 2 |
| 2 | 4 | 6 |
Insulated Glazing
| Door Width | Center Stiles | Windows / Sections |
|---|---|---|
| Up to 8’2″ | 8’3″ – 16’2″ | 16’3″ – 20’2″ |
| 1 | 2 | 3 |
| 4 | 6 | 8 |
Brochures
Sectional – Amarr 3582 – Download pdf
Aluminum Full View Doors Amarr® 3552 / Amarr® 3502- Download pdf
Warranty
Commercial Sectional Warranty – Download pdf
