Amarr 2002/2012/2022 Ribbed Panel Steel Garage Doors

Schedule Service
(405) 563-8982

Blends Extra Heavy Duty With Versatility

Overview

The Amarr 2002, 2012, 2022 Ribbed Panel Doors combine Extra Heavy-Duty strength with versatility. The deep ribbed 20-ga. Steel sections can be factory- or field-modified with CFC-free polystyrene insulation featuring a nylon or steel backer. It is available in uninsulated, insulated, or insulated with a steel backer to fit most project requirements and comes with a 10-year warranty.

  • Strength Security: 20-gauge steel doors with a deep ribbed profile provide maximum strength and security
  • Product Flexibility: The Model 2002 is available uninsulated, insulated, or insulated with a steel backer to fit most project requirements
  • Rapid Install Vertical Lift: Time is money! Designed for Amarr commercial warehouse and dock doors; saves approximately 20 minutes of installation time.
  • Environmental Assurance: Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential, zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
  • Maximum Door Size: 26′ 2″ W x 26′ 1″ H
Schedule Service
(405) 563-8982

Amarr 2002

Amarr 2012

Amarr 2022
R-Value N/A 7.0 7.0
Steel Thickness 20 ga 20 ga 20/25 ga
Panel Design Deep Ribbed Deep Ribbed Deep Ribbed
Steel Embossment Smooth Smooth Smooth
Construction Layers One Two Three
Max Std Width 26’2″ 26’2″ 26’2″
Max Std Height 26’1″ 26’1″ 26’1″
Door Thickness 2″ (5.1cm) 2″ (5.1cm) 2″ (5.1cm)
U-Value N/A 0.143 0.143
White

True White

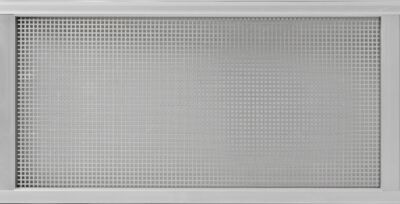

Perforated Aluminum Full View Section

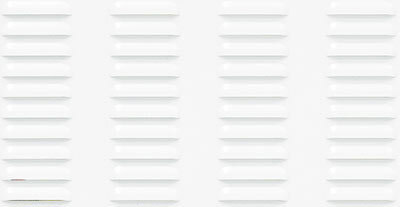

Louvered Aluminum Section

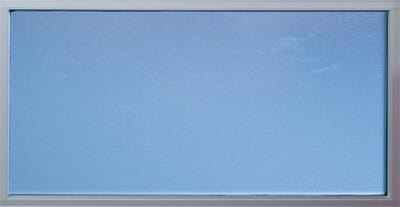

Full View Section

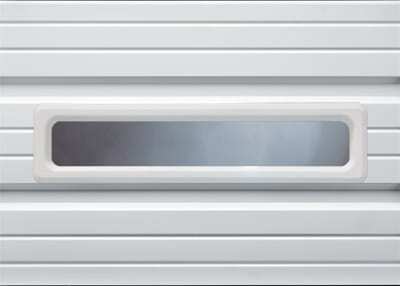

24″ x 6″

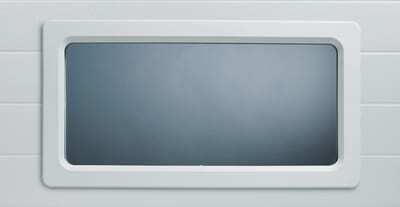

24″ x 12″ insulated

Model 2022 Triple-layer, insulated

  • Ribbed steel outer panel
  • Polystyrene insulation
  • Steel interior panel

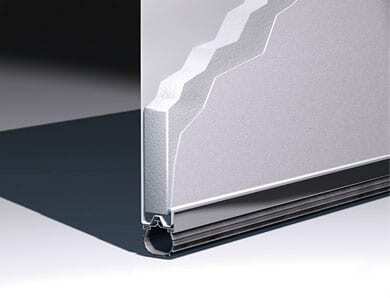

Model 2012 Double layer, insulated

  • Ribbed steel panel
  • Viny-backed polystyrene

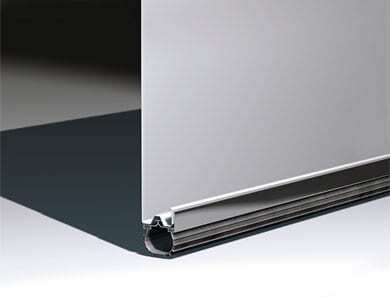

Model 2002 Single-layer, open-back

  • Ribbed steel panel
Brochures

Sectional – Amarr 2002/2012/2022/2402/2412/2422/2502/2512 – Download pdf

Warranty

Amarr Consolidated Commercial Warranty – Download pdf
